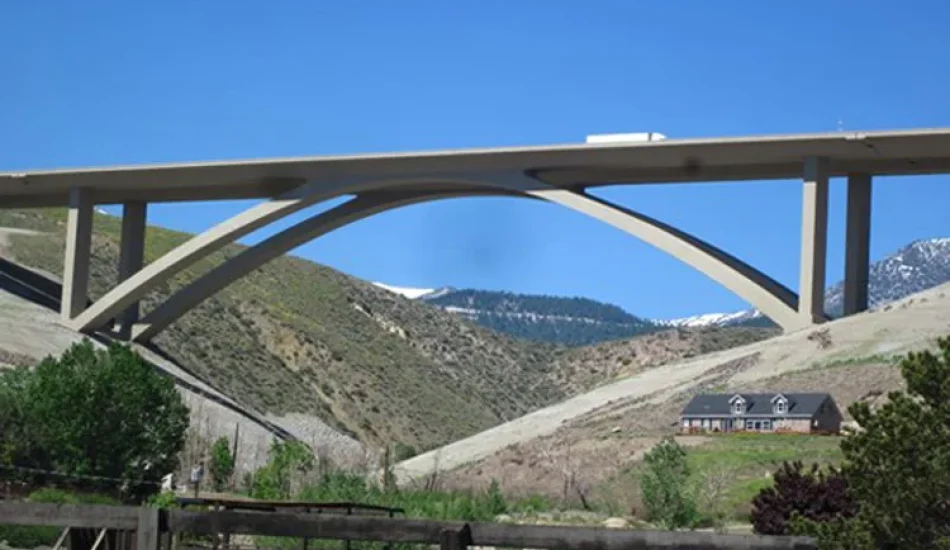

The Nevada Department of Transportation (DOT) has funded the QUAKELOGIC, University of Nevada Las Vegas and Georgia Institute of Technology to implement a permanent SHM system for the world’s largest concrete cathedral-arch bridge (Galena Bridge) near Reno, Nevada to monitor the bridge’s response in real-time to routine traffic, environmental conditions and seismic activity.
The bridge’s unique SHM system consists of 45 high-end sensors including accelerometers, potentiometers, tilt meters and weather stations connected to two 24-bit IP-based digitizers. The superstructure’s instrumentation system is complimented with an abutment seismic station housing a triaxial accelerometer and a digitizer.
These sensor systems work seamlessly with the QUAKELOGIC’s real-time SMARTBRIDGE SHM platform. This platform sends immediate notifications to Nevada DOT about structural performance after earthquakes.
QuakeLogic’s SHM system automatically triggers on predefined events, such as an earthquake, and rapidly send text and email notifications to alert users. It also prepares a detailed assessment report in PDF.
SMARTBRIDGE is integrated with QuakeLogic’s mobile-friendly dashboard, a data management framework to support aggregation, storage and reporting of SHM data obtained and analyzed from the users’ facilities.
Engineering case study
Technical portfolio summary
QuakeLogic Galena Creek Bridge case study covering bridge structural health monitoring, sensors, and infrastructure data acquisition.
Engineering reference
Search-ready project context
Structured engineering details for readers, search engines, and AI answer systems. The statements below are derived from the visible case-study content, title, taxonomy, and QuakeLogic portfolio context.
Executive Summary
QuakeLogic Galena Creek Bridge case study covering bridge structural health monitoring, sensors, and infrastructure data acquisition.
Engineering Challenge
The project context centers on earthquake risk, seismic instrumentation, and reliable engineering response for the asset or facility described in the case study.
Technical Solution
The case content identifies seismic sensing, monitoring, alerting, or trip-system engineering as the core technical approach.
Products Used
SMARTBRIDGE structural health monitoring system, Universal testing machine
Technologies Used
USA, bridge-monitoring, NDOT, SHM, SMARTBRIDGE, Transportation infrastructure, Bridge monitoring, Data acquisition
Industries Served
Transportation infrastructure
Engineering Disciplines
Structural monitoring program; Seismic sensing and alerting
Results / Benefits
The case study documents the project context, engineering discipline, technology focus, and related QuakeLogic portfolio work without adding unsupported performance claims.
